XSVR02010滾珠絲杠
雷研精密傳動設備有限公司供應XSVR02010滾珠絲杠【貨源充足、價格合理、原裝正品、品牌齊全】滿足客戶的需求。請需要XSVR02010滾珠絲杠的朋友聯系:黃志杰(經理)? 聯系電話:15802034588。
XSVR02010滾珠絲桿參數
鋼珠中???????????????????????????????? ?Ball center dia.?????????????????????? ?21.35
鋼珠直徑??????????????? ? Ball dia.???????????????????????????????????? ?3.969
導程????????????????????????? Pitch???????????????????????????????????????? ?? 10
珠卷數?????????????????????????????? ? Number of turns??????????????????? ? 2.7×1
導程角???????????????????????????? ?? Lead angle???????????????????????????????? 22.33°
螺旋方向??????????????????????? ??? Helix dir.?????????????????????????????? ????? R
彈簧力??????????????????????????? ?? Spring force????????????????????????????? 0.1~0.3Kg
預壓量??????????????????????????? ?? Preload????????????????????????????????????? 43Kgf
動負荷Ca(Kgf)???????????? ? Dynamic (Ca)???????????????????? ???? ?1252
靜負荷Co(Kgf)?????????????? Static (Coa)?????????????????????????????? 2748
精度(級數)????????????????????? Grade?????????????????????????????????????? ? 0.018

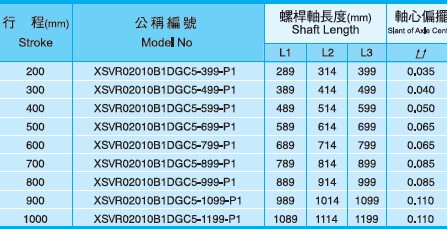

XSVR02010滾珠絲桿不同長度的參數
行程????????????????????????公稱編號?????????????????????? 絲桿軸長度????????????????????? 軸心偏擺
Strke?????????????????????????????? Model NO???????????????????? L1??? L2????? L3
200???? XSVR0201OB1DGC5-399-P1?????? 289?? 314???? 399??????????????? ?0.035
300???? XSVR0201OB1DGC5-499-P1?????? 389?? 414???? 499????????????????? 0.040
400???? XSVR0201OB1DGC5-599-P1?????? 489?? 514???? 599??????????????????0.050
500???? XSVR0201OBIDGC5-699-P1?????? 589?? 614???? 699???????????????? ?? 0.065
600???? XSVR0201OBIDGC5-799-P1?????? 689?? 714???? 799?????????????????? ?0.065
700???? XSVR0201OB1DGC5-899-P1?????? 789?? 814???? 899??????????????????? 0.085
800???? XSVR0201OB1DGC5-999-P1?????? 889?? 914???? 999????????????????????? 0.085
900???? XSVR0201OBIDGC5-1099-P1????? 989?? 1014??? 1099?????????????? ??0.110
1000??? XSVR0201OBIDGC5-1199-P1????? 1089? 1114??? 1199??????????????? 0.110
【TBI滾珠絲桿簡介】
全球傳動科技股份有限公司(TBI MOTION) 成立TBI MOTION同時整合TBI的專業製造技術及COMTOP的行銷體系以展新的面貌引領市場。
TBI滾珠絲桿是以多年來所累績的制品技術甚而,從材料,熱我理、制造、檢查到出貨,者是以嚴謹?shù)钠繁V贫葋?lái)加以管理,因此具有高信賴性
